Uh-oh! Has your CFexpress (CompactFlash Express) card suffered from a problem that has resulted in the loss of some of the data you had on it? CFexpress cards are prone to issues like this during their lifetime, but most of the time they can’t be anticipated.

Fret not, as there are a number of proven solutions you can use to recover from this. Follow the solutions mentioned in this article to recover data from a CFexpress card.

How to Recover Files From CFexpress Card

Your data, in its current state, is vulnerable to permanent loss if you don’t act quickly. Before you jump straight into tackling the problem, you should first perform CFexpress card data recovery using data recovery software to ensure none of your files become permanently lost.

Choosing the right CFexpress recovery software can be challenging, especially if you don’t know what to look for. To help with your search, we’ve chosen a data recovery tool that we believe is best suited for the job.

The ideal data recovery tool, in this situation, should have the following features and capabilities:

  • 🗃️ Support for FAT32 and exFAT – CFexpress cards typically use the FAT32 or exFAT file system, so a recovery tool that shows good recoverability from these file systems is a great start.
  • Ability to scan corrupted CFexpress cards – If your CFexpress card has become corrupted or raw, the recovery program must still be able to recognize and scan the device for lost data.
  • 🔍 Multiple scan modes – In cases where your CFexpress card is particularly damaged, you may need to rely on more in-depth scanning methods, like a signature scan, to get your files back.

sd
Disk Drill is our preferred software of choice. It has the ability to scan a wide range of file systems, including FAT32 and exFAT, and it incorporates multiple scan modes into a single click so you recover as much of your data without the added effort of performing separate scans. Furthermore, it can read and scan CFexpress cards even if they suffer from logical damage that’s causing them to not appear in programs like File Explorer. Learn more about the program in our Disk Drill review.

Follow these steps to perform CFexpress card recovery using Disk Drill to restore data from the CFexpress memory card. These steps will be the same for both Windows and macOS users:

  1. Download and install Disk Drill.

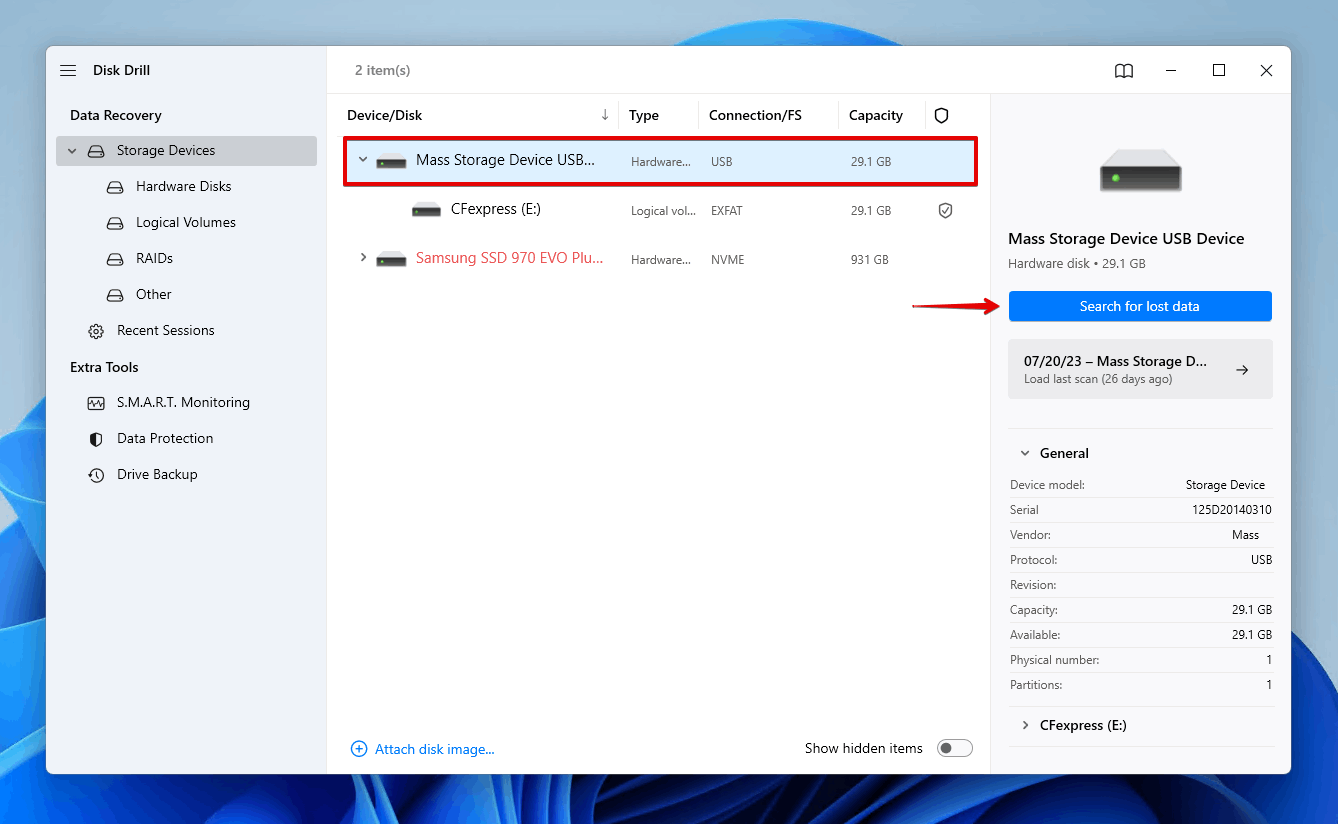

  2. Connect the CFexpress card and select it from the list of devices. Click Search for lost data to begin the scan. If your CFexpress card is in an unstable state, you can also create a byte-to-byte backup of it beforehand using Disk Drill’s free Drive Backup tool.Scanning the CFexpress card.

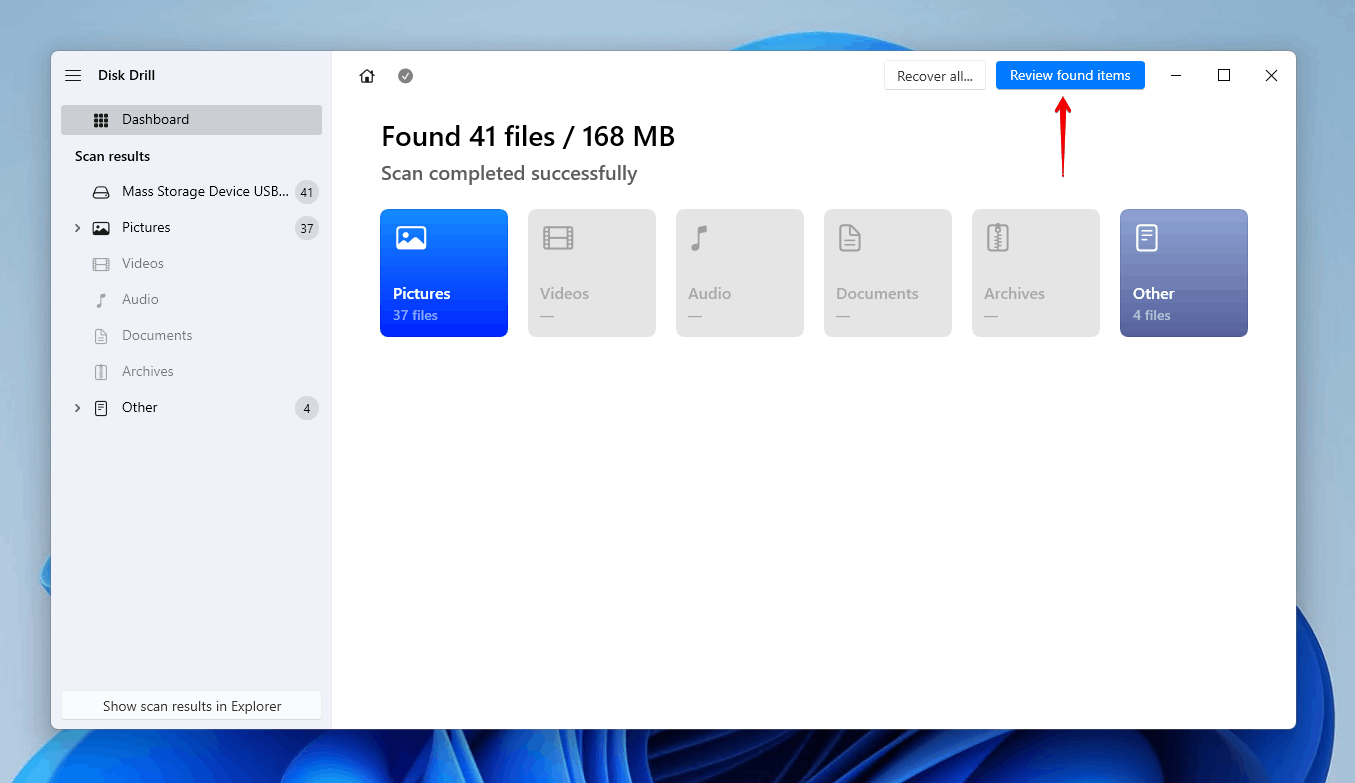

  3. Click the Review found items button once Disk Drill’s scan has finished. If you want to recover everything straight away instead, click Recover all.Reviewing what data was found.

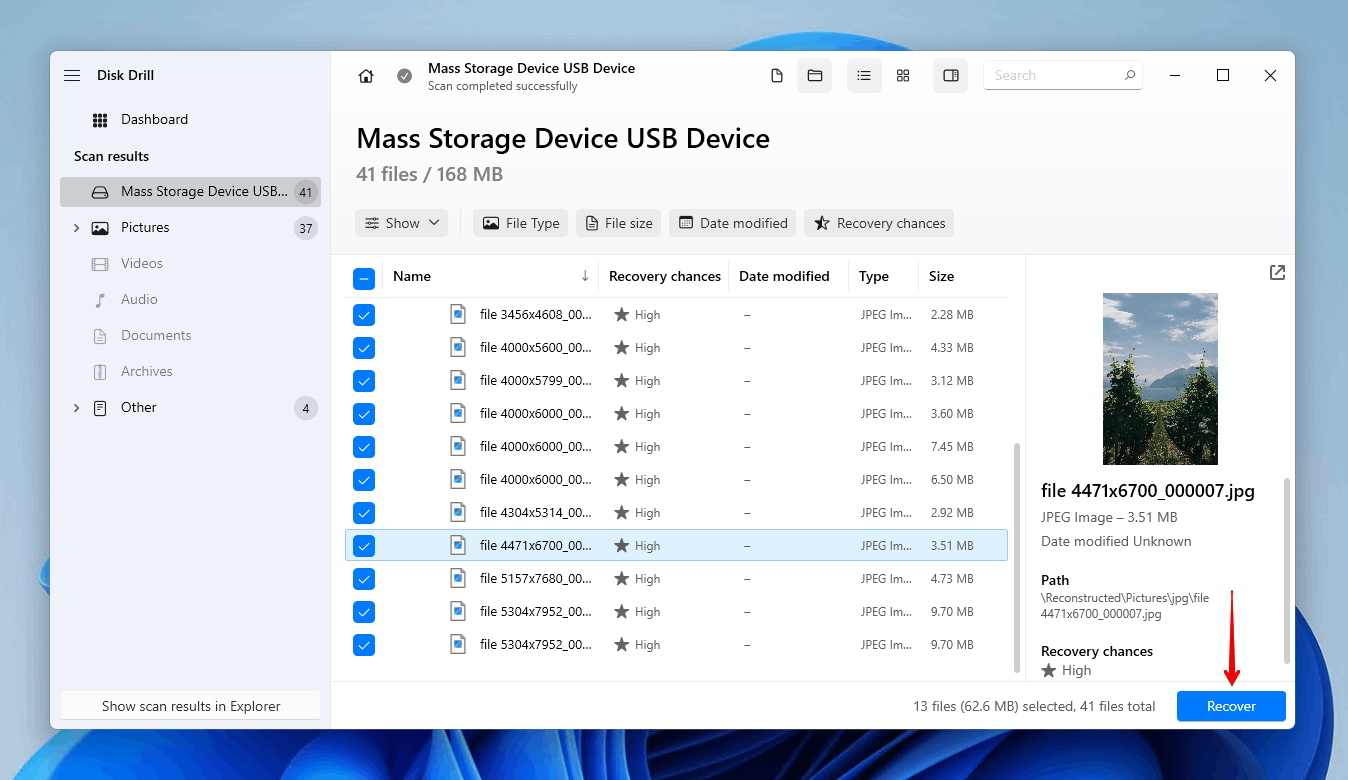

  4. Choose what files you wish to recover from the CFexpress card. Existing data can be found in the Existing dropdown section. If your file system was intact, you can find your deleted data in the Deleted or lost section. Otherwise, files that were recovered by their signature will be in the Reconstructed section. When you’re ready to proceed, click Recover.Recovering the selected files from the CFexpress card.

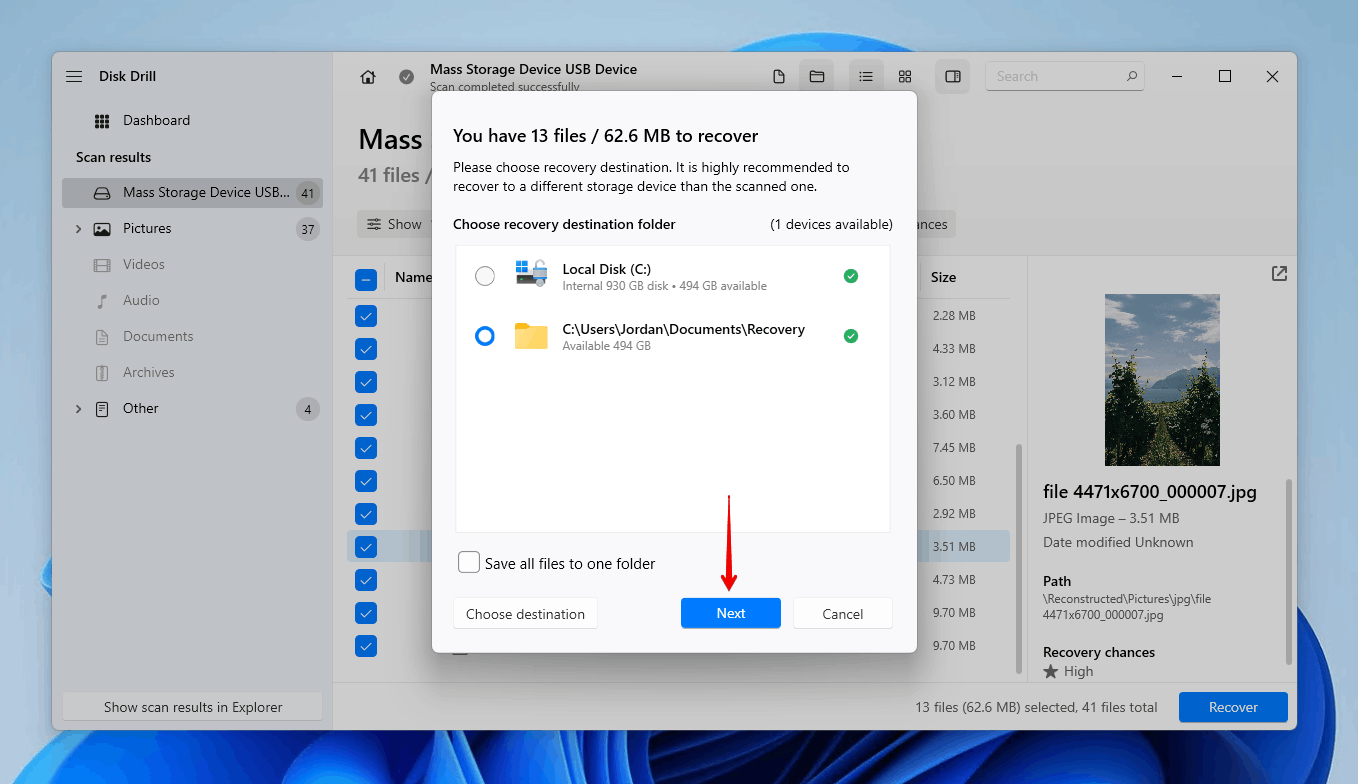

  5. Choose a safe recovery location on a separate storage device, then click Next to complete CFexpress card data recovery.Choosing a recovery location.
If you’ve tried Disk Drill and found it wasn’t to your liking, check out our list of the best data recovery software tools to see what other options are out there.

sd
Here at Pandora Recovery, our goal is to help you retrieve your data with as little stress as possible. To help with this, we’re extensively reviewing as many data recovery solutions as we can find. You can explore our wide range of Windows and Mac data recovery software reviews, and compare Windows and Mac recovery solutions to see how they differ. If you’re after a solution that’s tailored to your needs, check out our software picker too.

How to Fix Common CFexpress Card Corruption Problems

Despite your CFexpress card being in a less-than-desirable state right now, the good news is that there are a number of proven solutions you can use to get the CFexpress card back in working condition.

Fix CFexpress Card Errors With Built-in Tools

Many times, your operating system includes repair tools that are intended to address the sort of issues that could be afflicting your CFexpress card. For Windows, this is the error-checking tool. For macOS, this is First Aid. Both are great means of fixing a memory card without formatting.

Windows

The error-checking tool utilizes the functionality of CHKDSK to scan your CFexpress card for errors and attempt to address them.

Follow these steps to perform error checking on your CFexpress card:

  1. Open File Explorer.

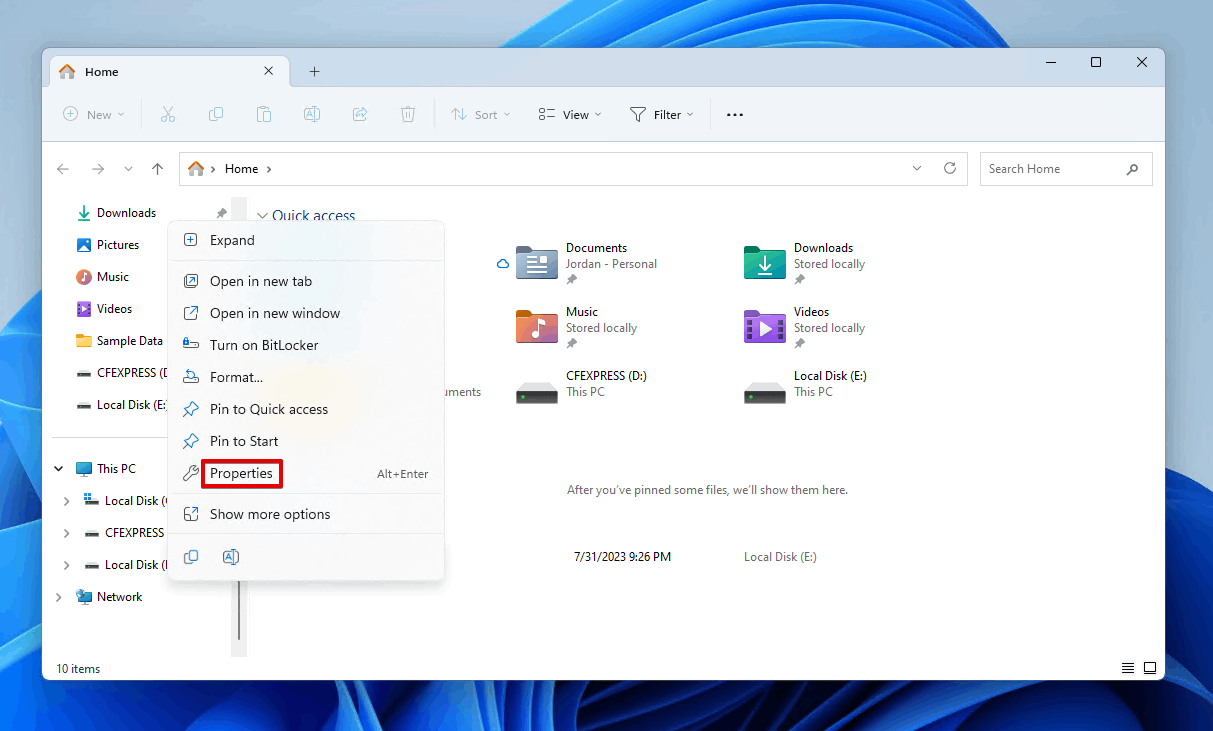

  2. Right-click the CFexpress card and click Properties.Opening the CFexpress card properties.

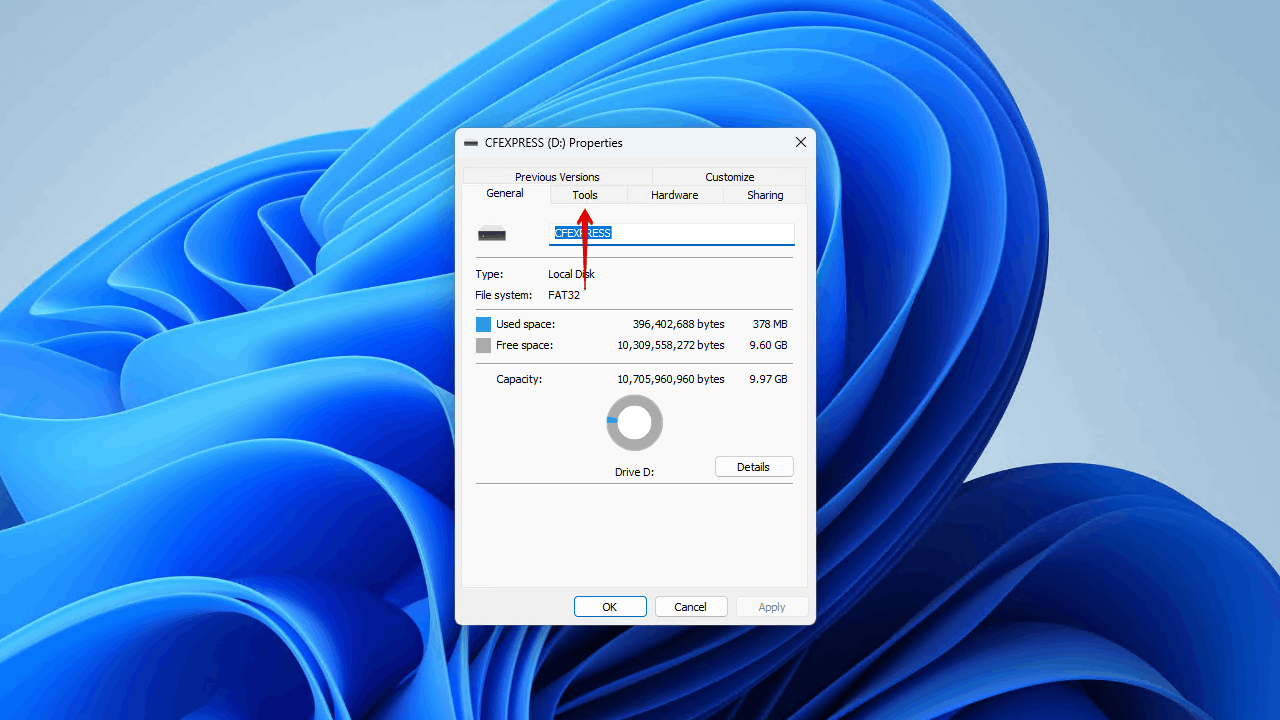

  3. Click Tools.Checking CFexpress card tools.

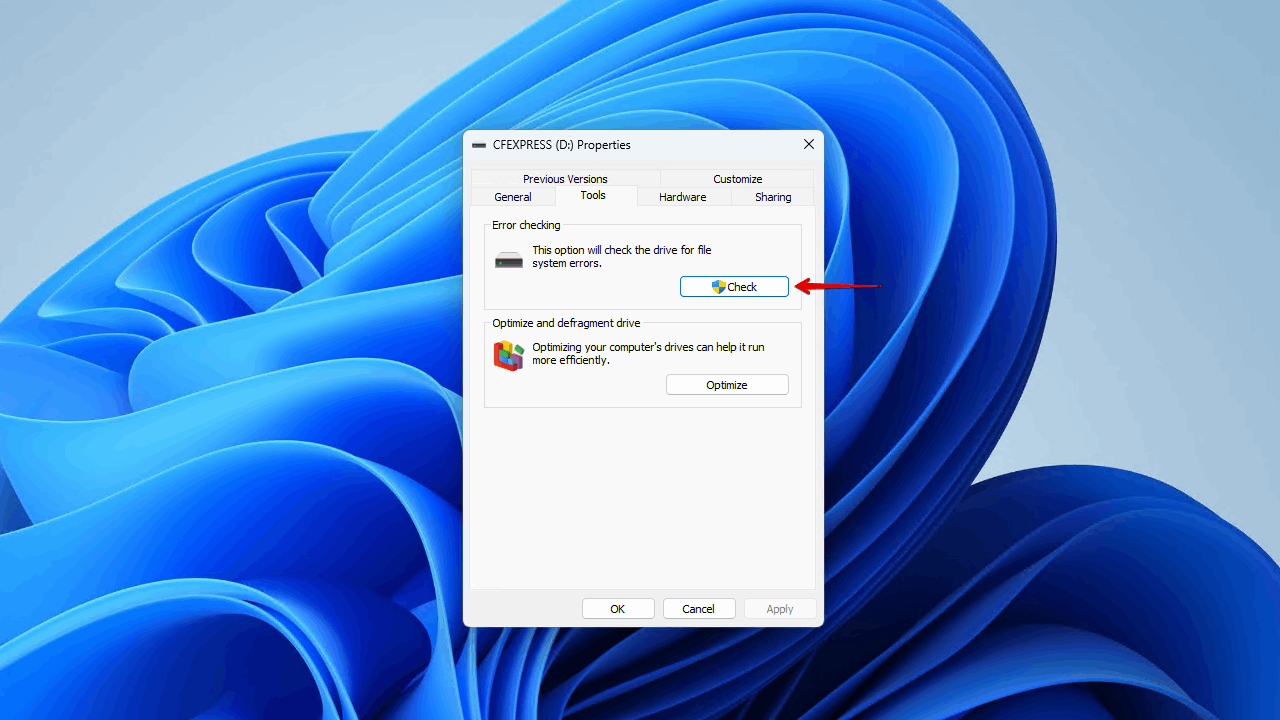

  4. Click Check.Checking the CFexpress card for errors.

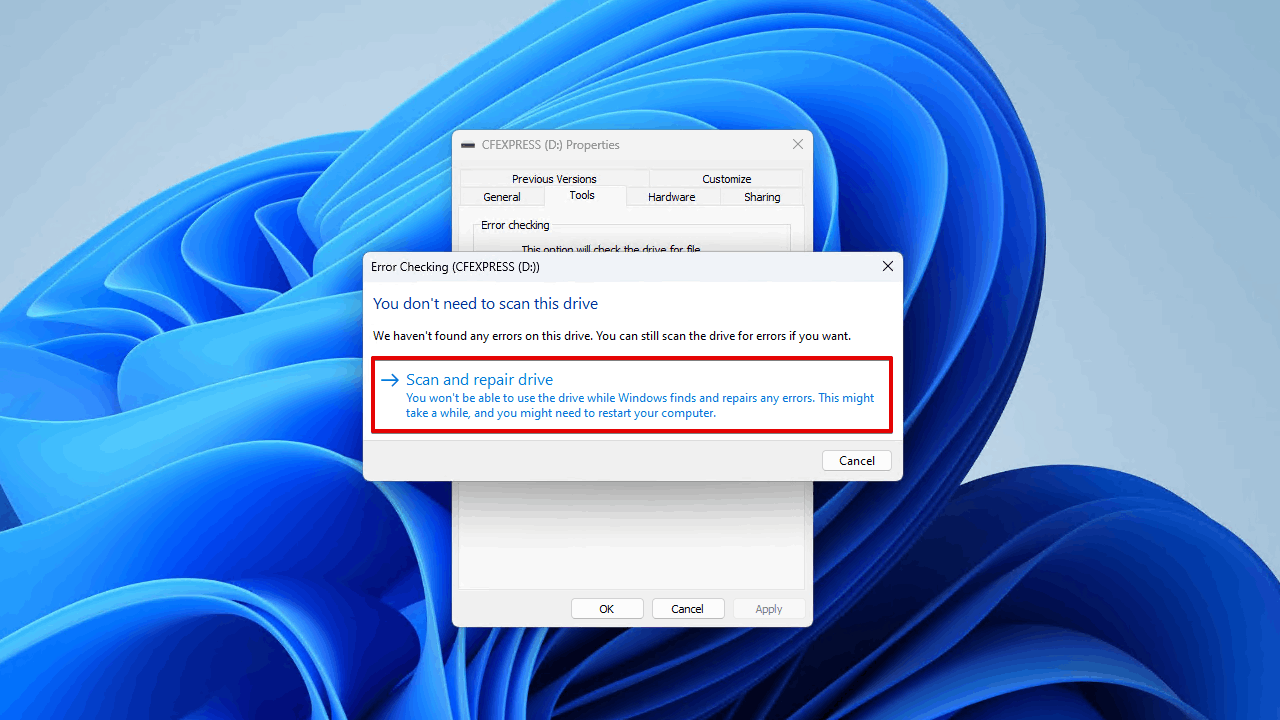

  5. Click Scan and repair drive. Follow the on-screen instructions.Scanning the drive for errors.

macOS

Disk Utility for macOS includes a First Aid feature that works similarly to error checking in the sense that it’s designed to scan your CFexpress card and repair any problems that it finds.

These troubleshooting steps will also work for CF cards, but should only be performed after you recover data from the CF card on Mac.

Here’s a brief rundown of how to use the First Aid feature:

  1. Press Command + Spacebar on your keyboard. Type “Disk Utility” and open it.

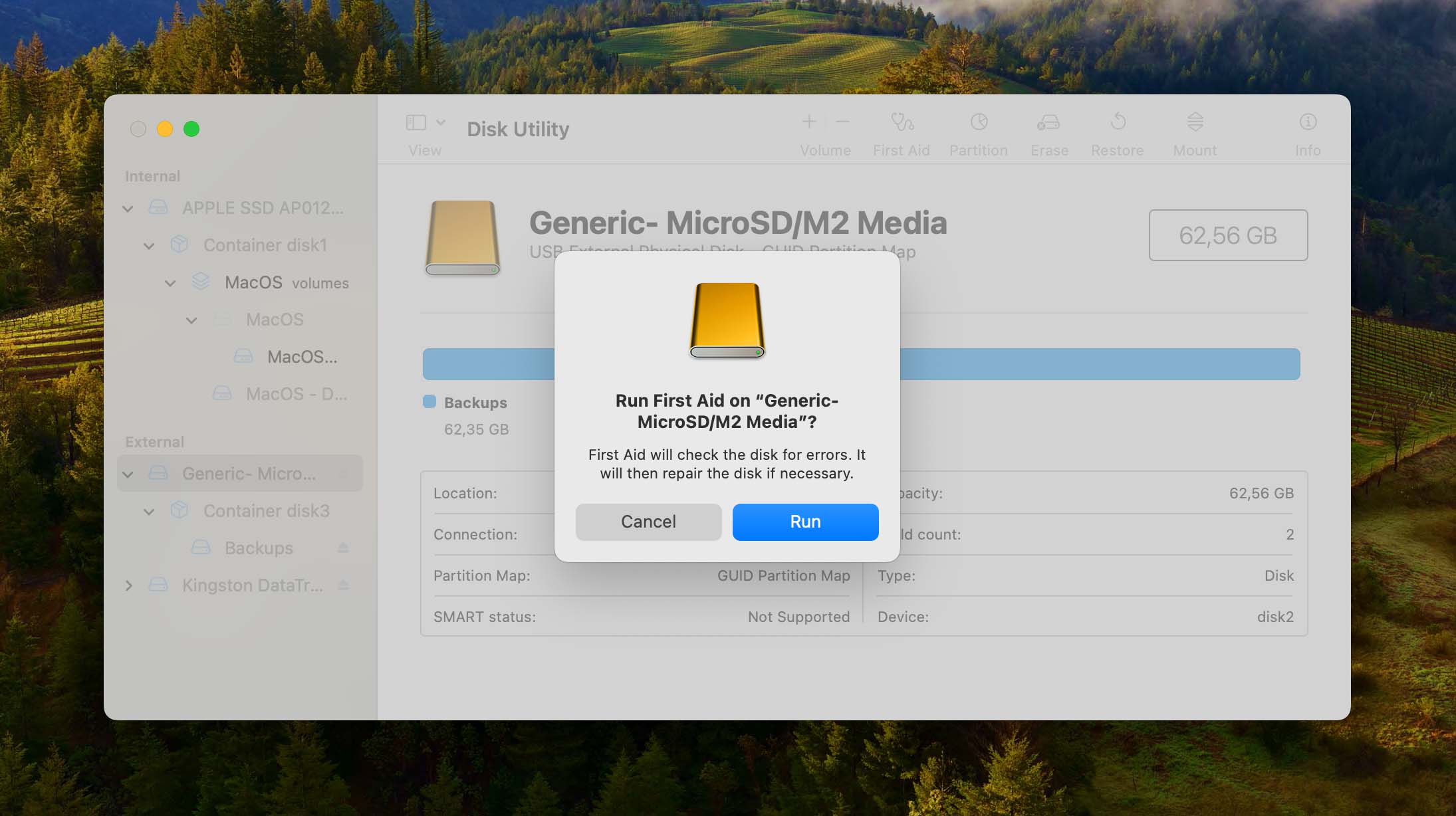

  2. Select your CFexpress card from the left panel, then click First Aid.use first aid on CF card
  3. Click Run.

Repair CFexpress Card File System Corruption

A third-party solution that can repair file system corruption is TestDisk. It’s a free memory card repair tool that may have a chance of fixing the damage and restoring the CFexpress card’s partition, along with the data. Our TestDisk review covers the ins and outs of the program if you want to learn more.

These instructions will guide you through restoring your CFexpress card with TestDisk:

  1. Download and extract TestDisk. Launch testdisk_win.

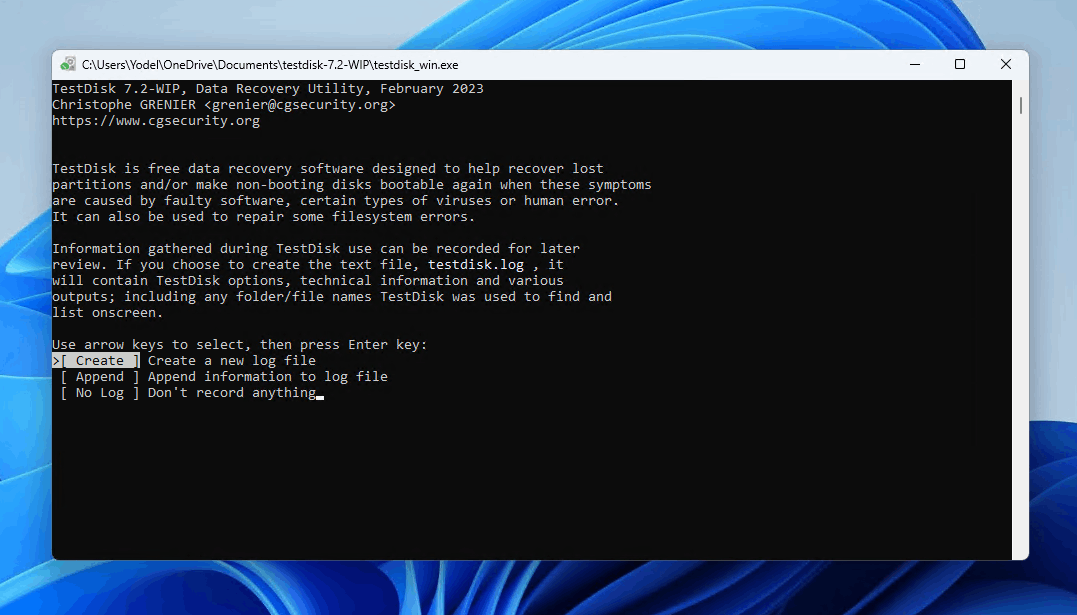

  2. Press Enter to create a log file.Creating a log.

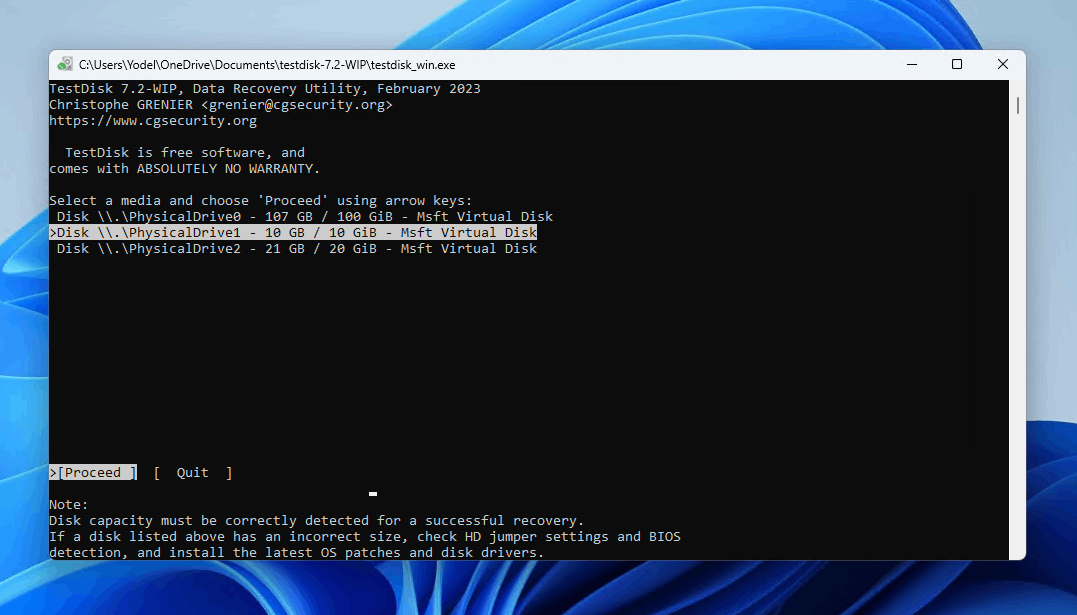

  3. Highlight your CFexpress card and press Enter to proceed.Selecting the CFexpress card.

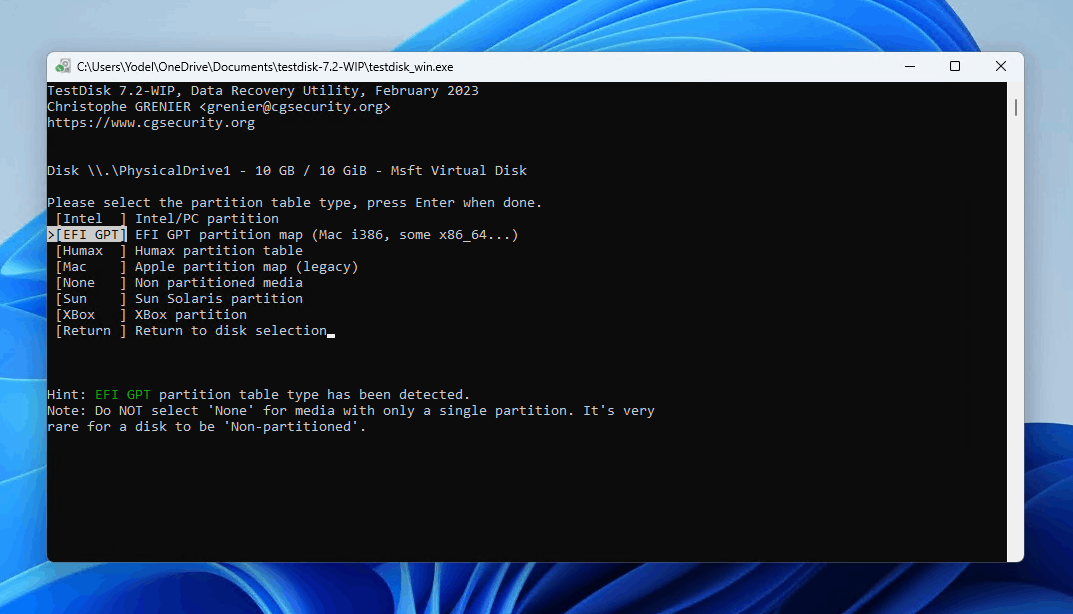

  4. Select your file system and press Enter.Selecting a file system.

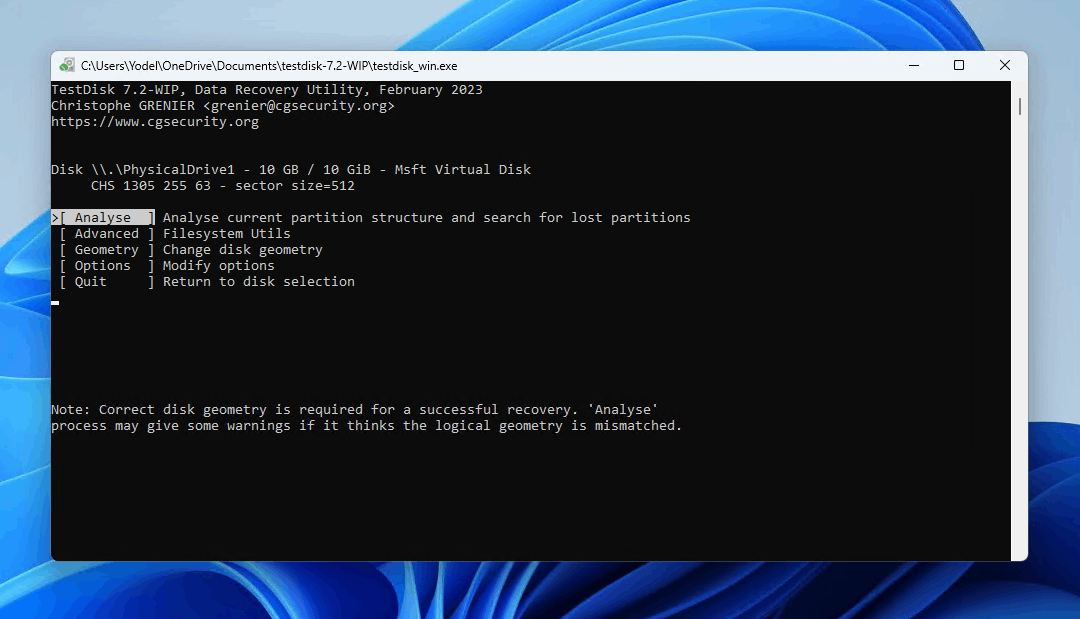

  5. Highlight Analyse and press Enter.Analyzing the CFexpress card.

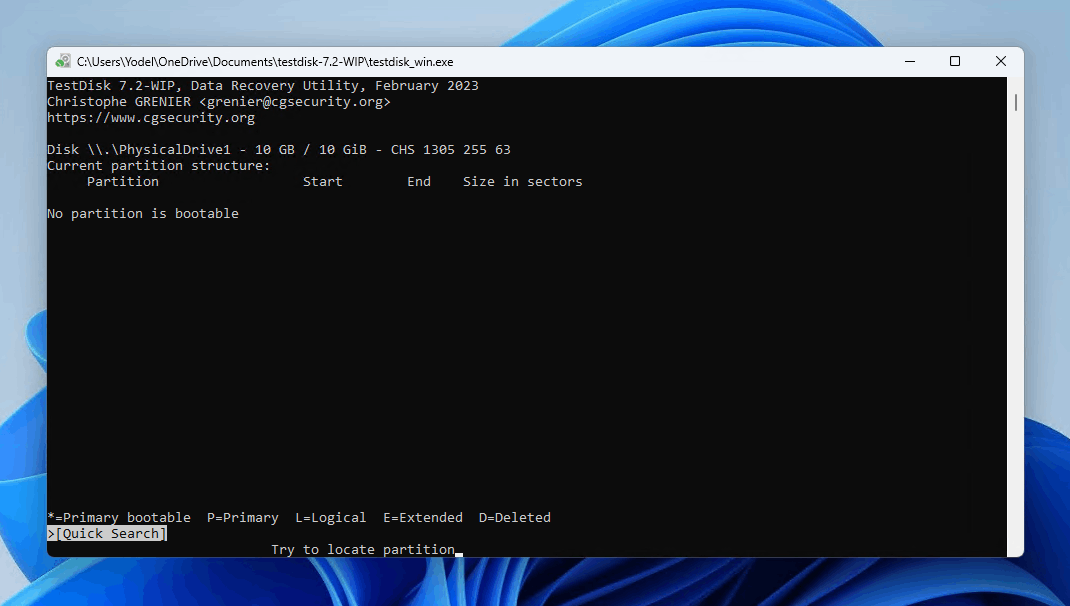

  6. Press Enter to begin a quick search.Performing a quick search for partitions.

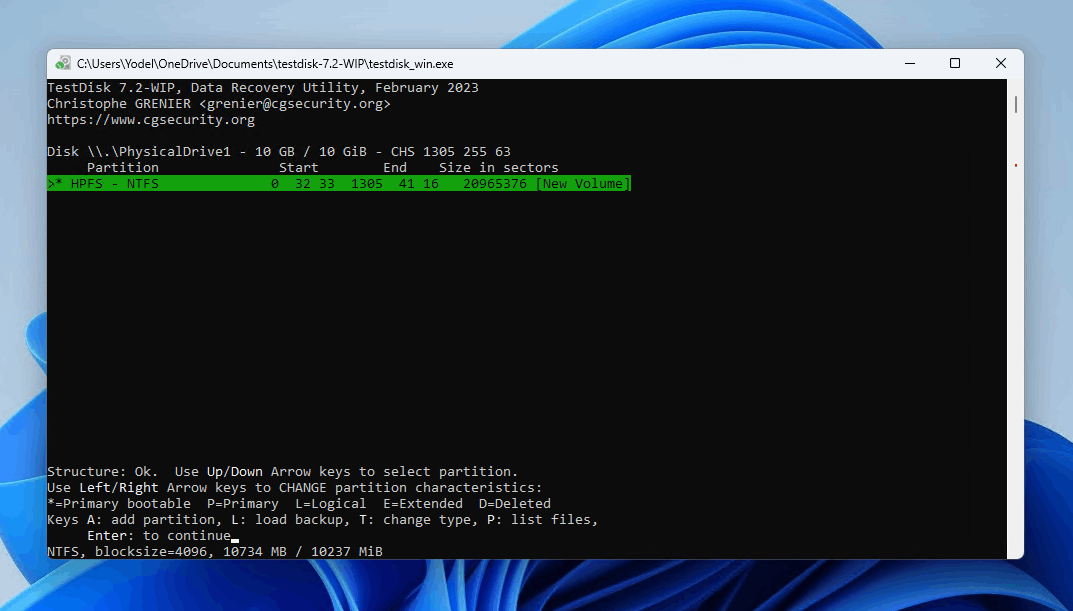

  7. Select the partition and press Enter.Selecting the recoverable partition.

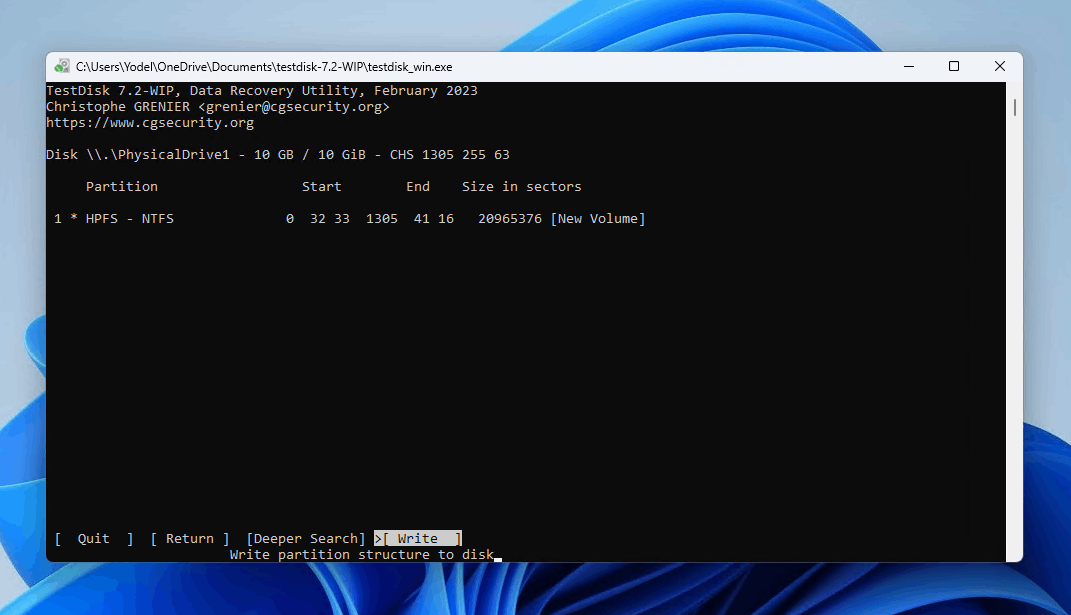

  8. Choose the Write option, then press Enter.Writing the partition to the disk.
  9. Press Y to confirm the action.

Format Your CFexpress Card

Formatting a corrupted or problem-prone CFexpress card is usually enough to fix it since it clears everything out, akin to performing a reset of the memory card. However, bear in mind that once a CFexpress card is formatted, all of the data is deleted from it. Therefore, we highly recommend performing data recovery before this step to make sure you don’t lose anything.

Although you can recover data from a formatted memory card, it’s highly encouraged to back your data up now as there’s no guarantee that the data will be recoverable after the format is complete.

Windows

This is how you format a CFexpress card using Disk Management on Windows:

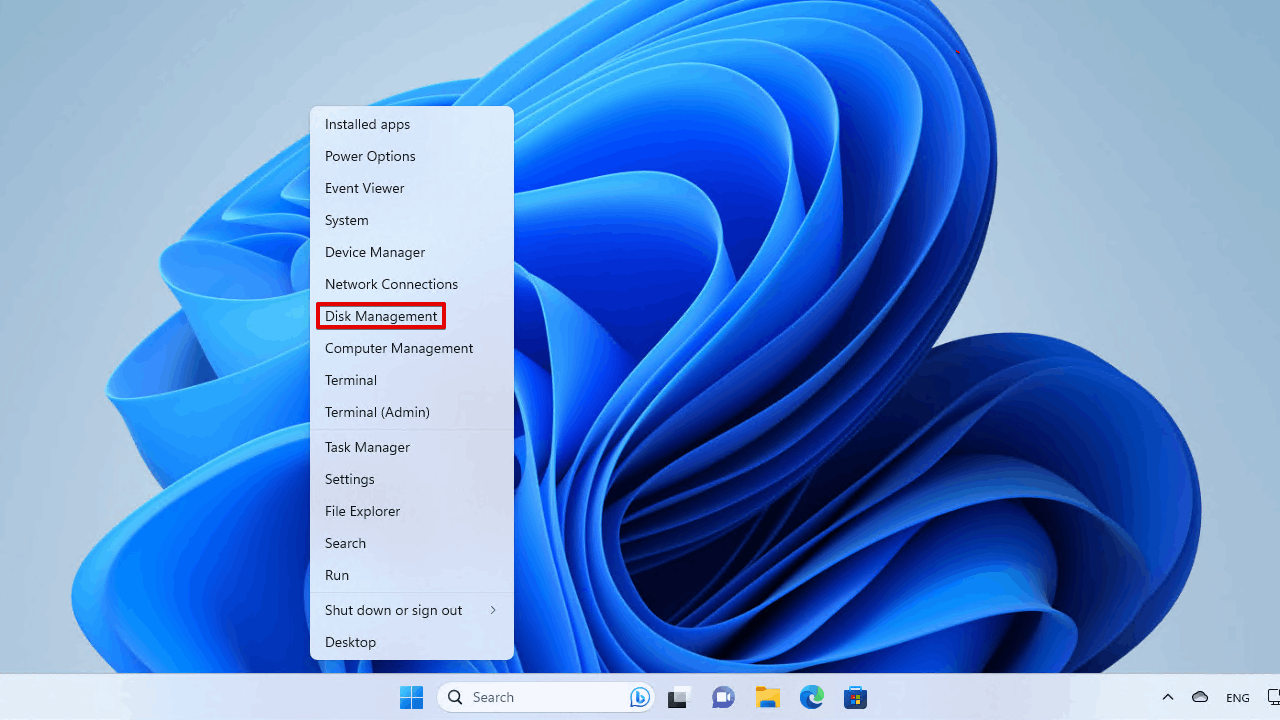

  1. Right-click Start and click Disk Management.Opening Disk Management.

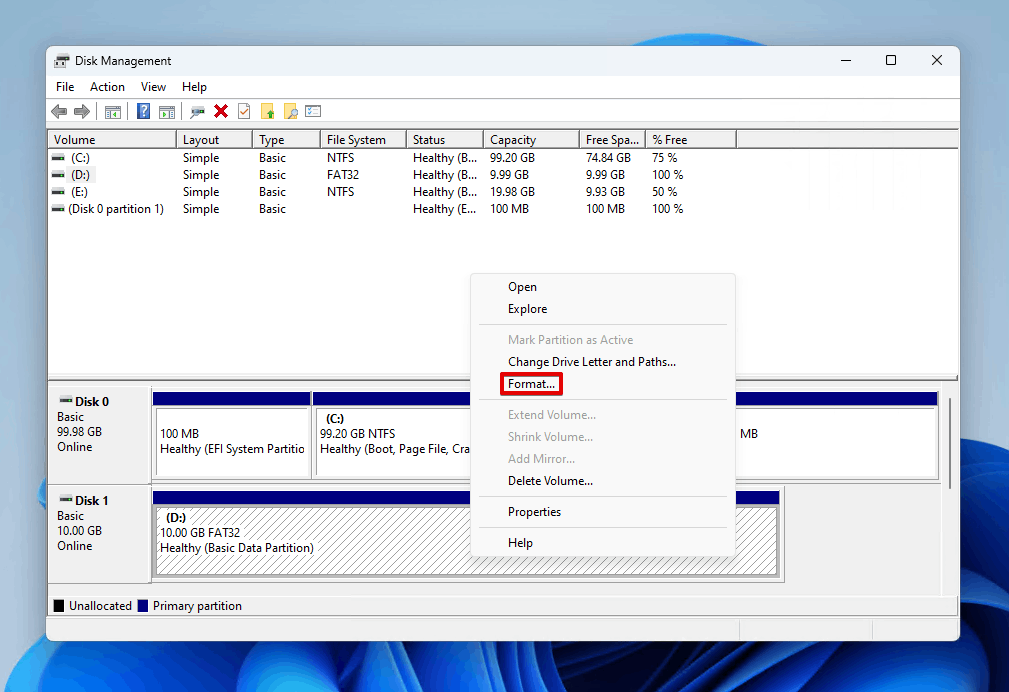

  2. Right-click the volume of your CFexpress card, then click Format.Formatting the CFexpress card.

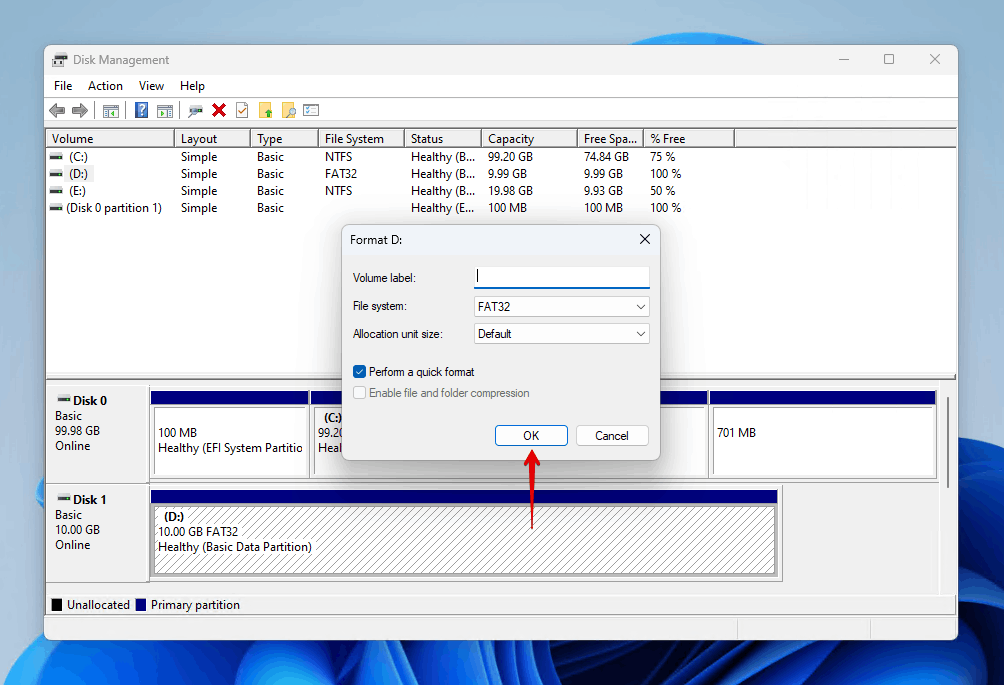

  3. Enter a volume label and specify what file system you wish to use. Make sure Perform a quick format is ticked and click OK.Defining the format.
  4. Click OK to confirm.

macOS

Here’s how you can format a CFexpress card on macOS using Disk Utility:

  1. Press Command + Spacebar on your keyboard. Type “Disk Utility” and open it

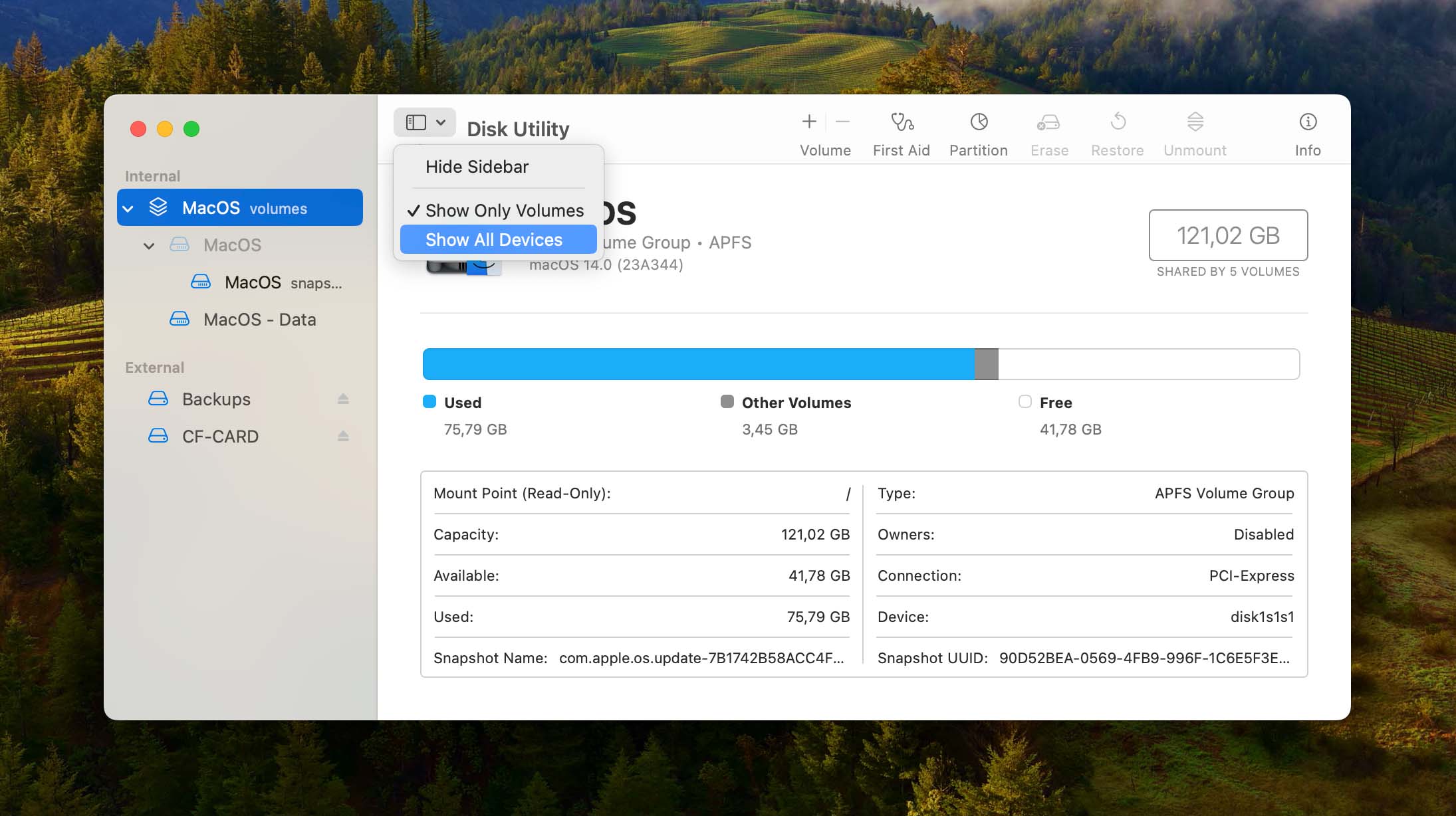

  2. Click View, then Show All Devices.Show All Devices in Disk Utility

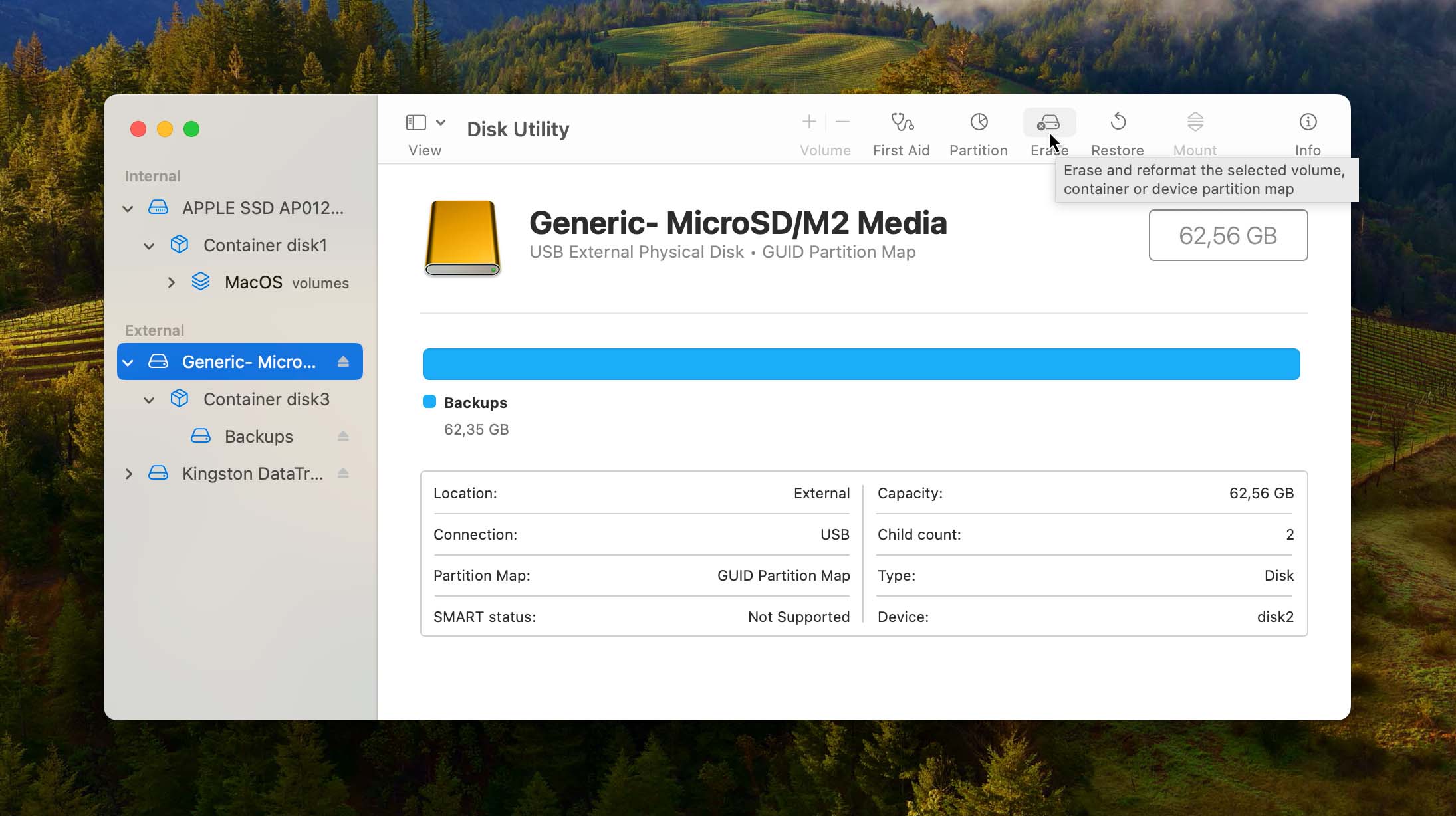

  3. Select your CFexpress card in the left sidebar, then click Erase.click erase cf card

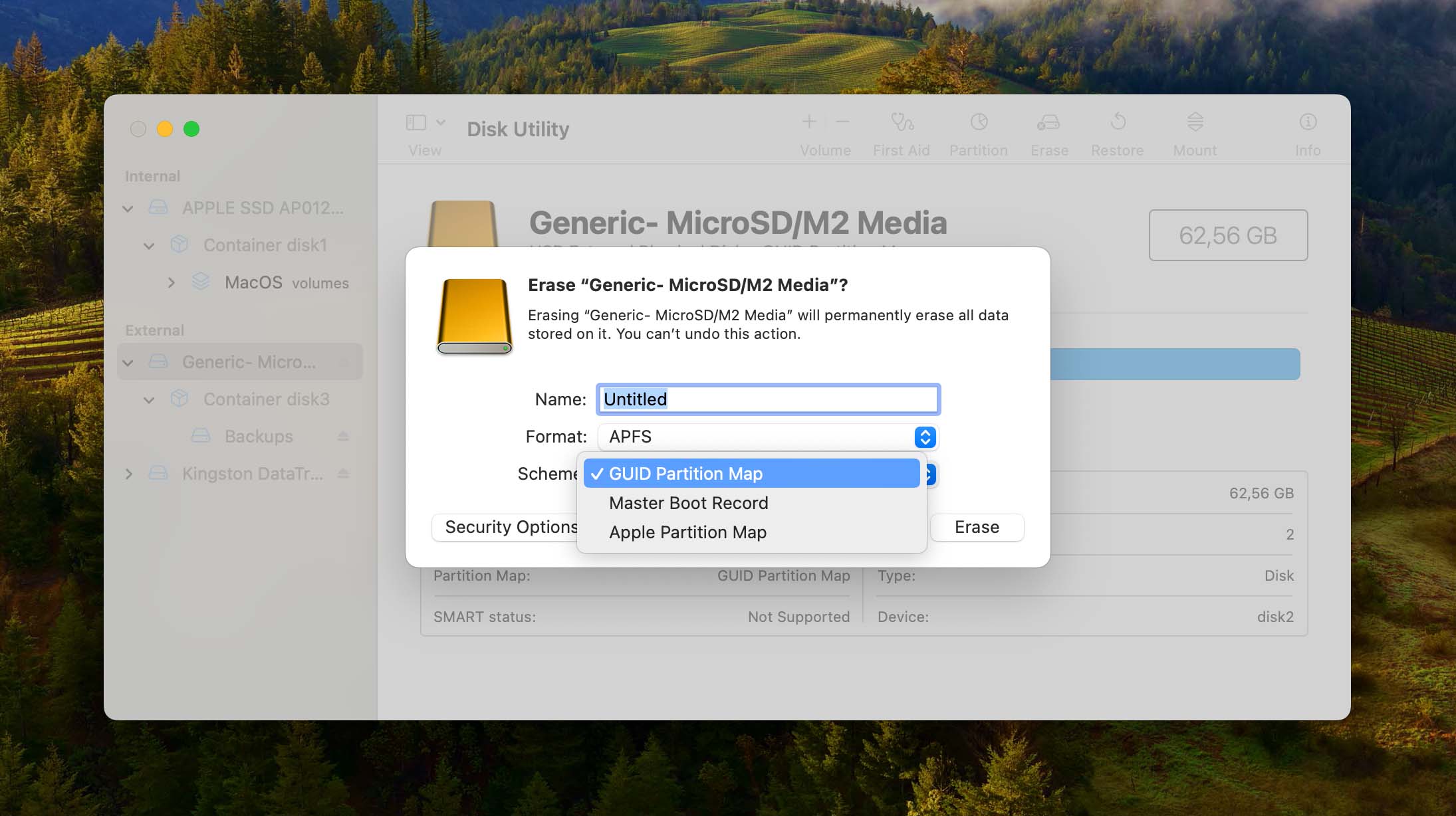

  4. Click Scheme, then click GUID Partition Map.click GUID Partition Map

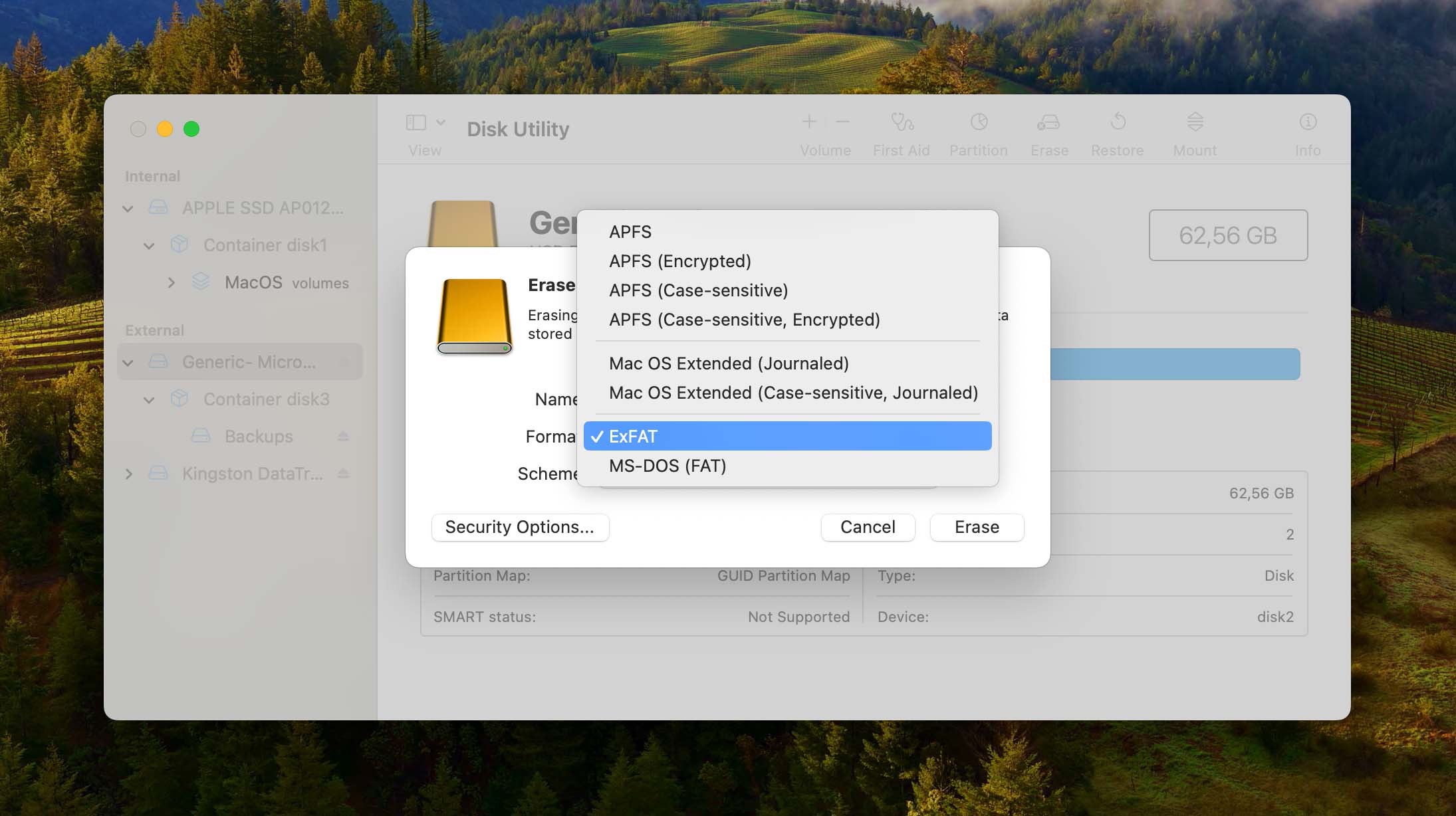

  5. Click Format, then choose a file system.select file system format for cf card

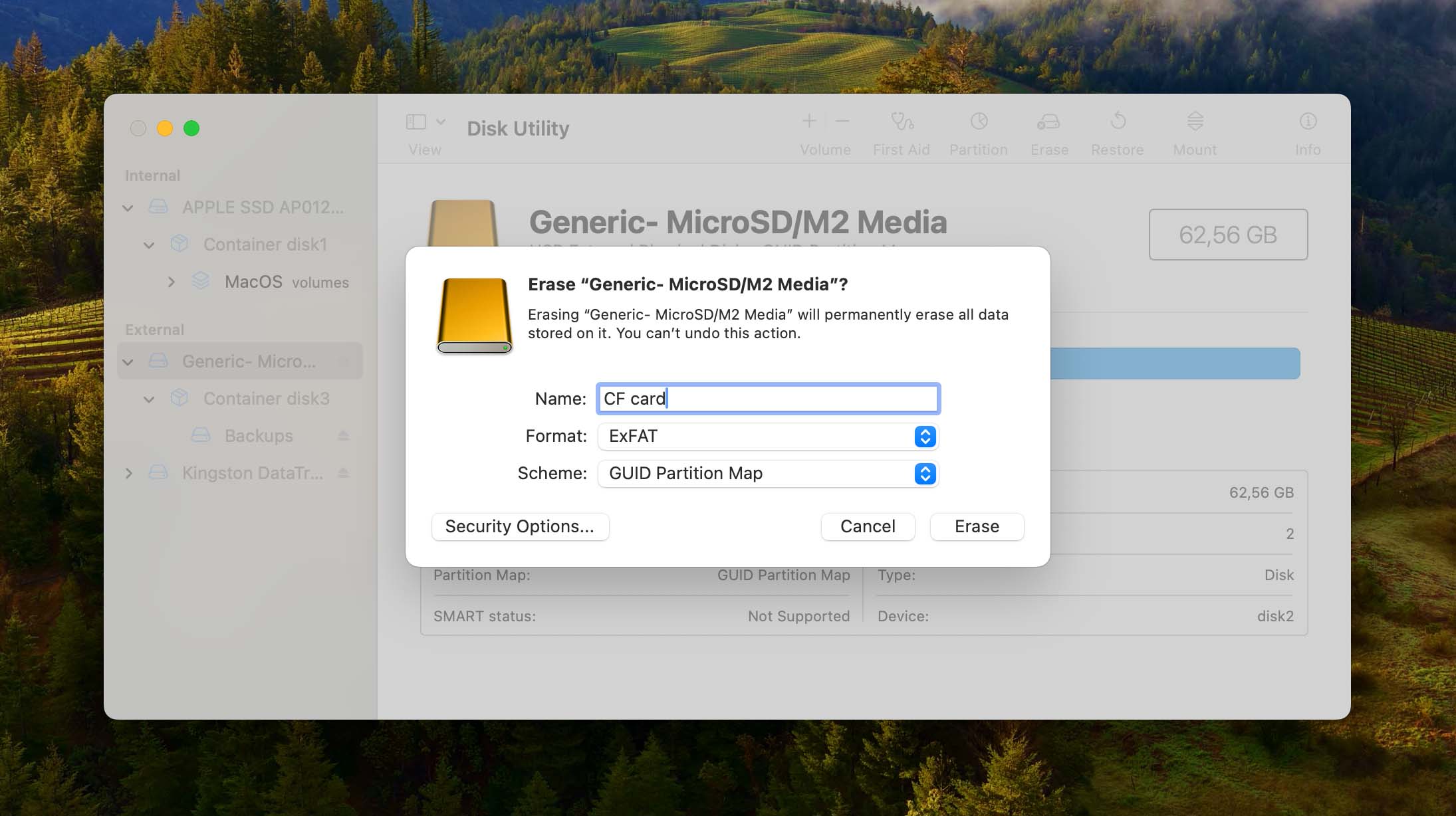

  6. Enter a name for the CFexpress card.Enter a name for the CFexpress card
  7. Click Erase, then Done.

Contact Data Recovery Services

Particularly damaged CFexpress cards may not even allow you to perform data recovery. In cases like this, you should rely on a data recovery service to get the job done for you. This method gives you the highest chance of recovering your data, but it also costs the most. A specialized data recovery service employs the services of recovery specialists who are equipped with the know-how and tools to get your data back safely.

What Is the Difference Between CF and CFexpress Cards?

CFexpress cards are the successor to CF cards, so they come with some considerable differences. The most noticeable difference is performance, as CFexpress cards can read and write data up to 4 GB/second, whereas CF cards cap out at 167 MB/second. This increase in performance makes CFexpress cards ideal for high-performance use, like 4K/8K video recording which CF cards would struggle with. Furthermore, they don’t share the same port, as CF cards are typically larger and thicker compared to CFexpress cards, which are smaller and thinner.

We’ve included a table below that covers some of the most important differences between CF and CFexpress cards:

Aspect

CF card

CFexpress card

Form factor

Larger, thicker

Smaller, thinner

Performance

Up to 167 MB/second.

Up to 4 GB/second (Type 2, Gen 3)

Storage

Up to 512 GB.

Up to 2 TB.

Interface

PATA (Parallel ATA)

PCIe and NVMe

Application

Best for older devices that require high transfer rates but don’t support CFexpress.

Best for shooting 4K/8K video and burst-mode photography.

Frequently Asked Questions

How do I recover data from my CFexpress card?

You can recover data from your CFexpress card using the data recovery tool, Disk Drill:

  1. Download and install Disk Drill.
  2. Connect your CFexpress card to your PC and select it.
  3. Scan the CFexpress card for recoverable data.
  4. Select the data that you want to recover from the CFexpress card.
  5. Choose a safe recovery location to store the CFexpress data.

Yes, formatting a CFexpress card will delete all of the files currently on the card. However, you may be able to get some of that data back, depending on the type of format you perform. A quick format does delete your files, but it gives you a chance of recovery using data recovery software. A full format completely zeros out the card, meaning recovery is not possible.

Therefore, we highly recommend making a complete backup of all the files on the CFexpress card before you format it.

Specialized recovery software is designed to read your CFexpress card, even if it’s not visible or accessible through programs like File Explorer. While you can attempt to fix the CFexpress card and regain access to your data, it can lead to data loss. We suggest recovering the data from the CFexpress card and then repairing it with a format.

Yes. TestDisk is a free open-source recovery tool that can repair the damage your CFexpress card suffers from and restore the data. If you want to recover individual files instead, try PhotoRec, another free open-source recovery tool from the same developer.

Conclusion

When your CFexpress card runs into a problem, some of your data may become lost as a result. You can recover deleted files from a CFexpress memory card of any brand, including SanDisk, Lexar, Sony, and more. To do this, you’ll need a reliable data recovery tool, like Disk Drill.

Once your data has been recovered, the CFexpress card can be repaired using the error-checking tool for Windows, or First Aid for macOS. If neither of those works, you may be able to repair the damage with the third-party tool TestDisk. Should that not work either, you can format the CFexpress card to repair the damage and then copy the data back over.
