MicroSD Card Recovery

MicroSD card recovery is a complex subject because there are many different reasons why you might need to recover deleted files from a MicroSD card, and there are at least just as many solutions that you can use to get back lost data. In this article, we focus mainly on logical MicroSD card recovery, but we also have some helpful tips to help you recover physically damaged memory cards.

Pro tip: MicroSD card data recovery is a race against time because your lost data can be recovered only when they’re still physically present on the memory card. Once they become overwritten, there’s no way to get them back. As such, you need to stop wasting precious time and apply the methods described below as soon as possible.

Quick Navigation



Problem

Solution

I have accidentally deleted an important file from my MicroSD card

Recover your MicroSD card using a memory card reader

I have formatted my MicroSD card by mistake and I need my data back

Recover your MicroSD card using a memory card reader

My MicroSD card is corrupted, and I get error messages like “memory card error” or “corrupt memory card”

Fix file system issues using CHKDSK

Files on my MicroSD card are missing but I didn’t delete them

Make hidden files visible

My MicroSD card is not recognized by my PC

Use a different memory card reader/computer

I think my MicroSD card was attacked by a virus

Scan the card using antivirus software

It seems that my MicroSD card is dead/critically damaged

Send the MicroSD card to a data recovery service

I have lost files stored on the MicroSD card in my camera

Recover your MicroSD card via USB

Important files that were stored on my Android MicroSD card are missing

Use Android data recovery software to recover your MicroSD without a computer

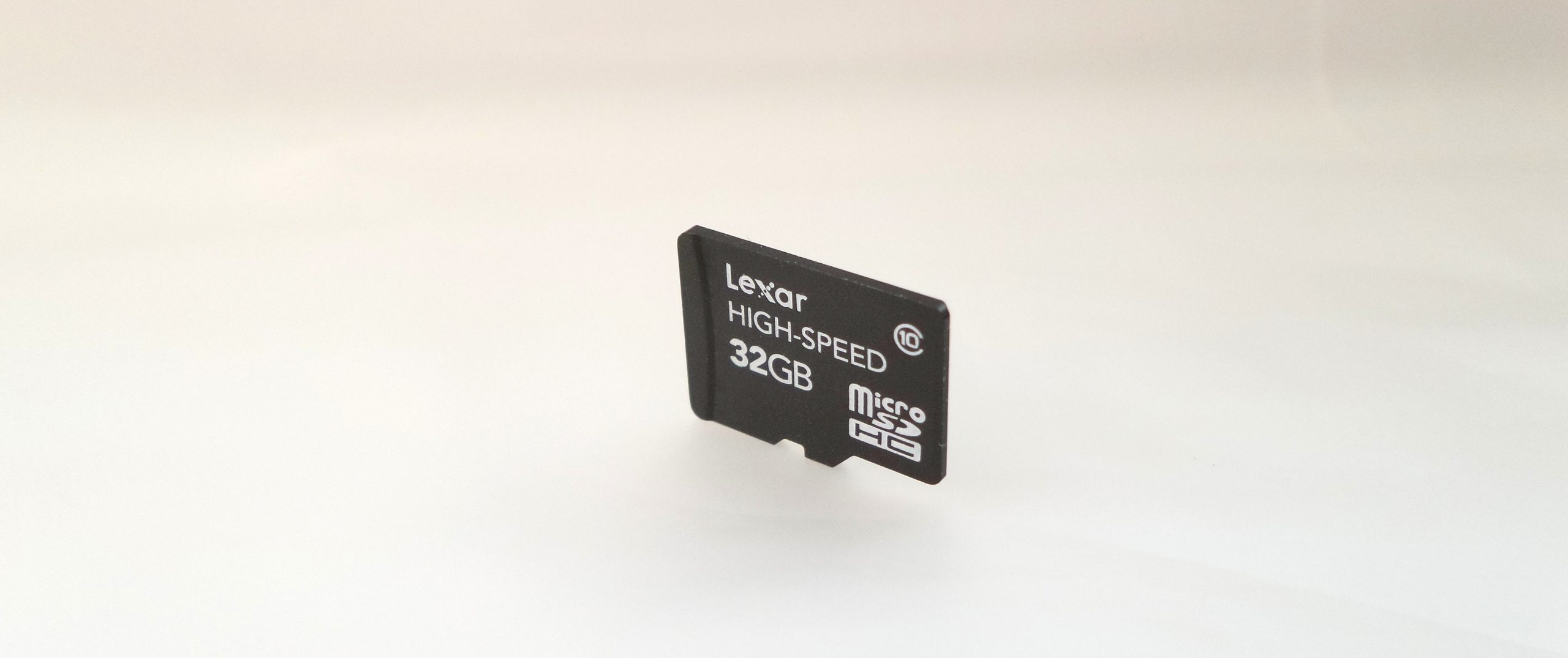

What Is the Difference Between MicroSD Card & Standard SD Card

The SD card standard was introduced in August 1999 by SanDisk, Panasonic, and Toshiba. The goal of the standard was to provide a better alternative to MultiMediaCards (MMCs), whose maximum data transfer rate is capped at 20 Mbit/s.

The standard SD card, which was first available in 2000, measures 32.0 × 24.0 × 2.1 mm (1.260 × 0.945 × 0.083 in) and is still used in many digital cameras, camcorders, car radios, and other electronic devices that don’t deal with major space constraints.

However, there are many small electronic devices, such as portable media players and smartphones, for which the standard SD card is simply too large. That’s why the MicroSD card standard was born in 2005. MicroSD cards measure 15.0 × 11.0 × 1.0 mm (0.591 × 0.433 × 0.039 in), making them far more suitable for the aforementioned space-constrained applications.

Besides their size, standard SD cards and MicroSD cards are largely identical, at least as far end users are concerned. In fact, many standard SD cards these days are actually just MicroSD cards fitted inside an adapter.

Logically Versus Physically Damaged MicroSD Cards: What’s the Difference?

When recovering lost files from any storage device, it’s important to know the difference between logical and physical damage to determine the most suitable recovery method.

  • Logical damage: The term logical damage refers to all causes of corruption and data loss that have something to do with software. Such causes include everything from power outages to system crashes to software bugs to user errors.
  • Physical damage: The term physical damage describes all causes of corruption and data loss that have something to do with hardware. For example, when you break your MicroSD card in half and loss access to all data, that’s one example of physical damage. Other examples include pin corrosion, exposure to water or extremely high temperatures.

If you want to recover data from a logically damaged MicroSD card, then you’re in luck because there are multiple effective ways to fix logical issues and regain access to important files, and we describe the most effective ones below.

As far as the recovery of physically damaged MicroSD cards goes, your chances of success are, unfortunately, much slimmer. Why? Because you need specialized equipment to recover data from a broken MicroSD whose flash memory chip is still in one place, and even the best tools available won’t help you if the chip is split in half. That’s why it’s generally best to leave the recovery of physically damaged SD cards to professionals.

Step-by-Step MicroSD Card Data Recovery Process

This section is intended for those who have no previous experience with MicroSD card recovery as well as those who just want some guidance on recover deleted files from a MicroSD card.

We have decided to split it into three sub-sections, each covering a different stage of the MicroSD card data recovery process. If your MicroSD card is accessible but corrupted, then you can skip to the second sub-section. If your MicroSD card is accessible and not corrupted in any way, then you can skip straight to the third sub-section.

Step 1: Make Your MicroSD Card Readable, Mountable, or Accessible

Problem: You insert your MicroSD card into your computer, but nothing happens—your computer can’t see the card.

Solution: Fixing a MicroSD card that has become unreadable can be tricky because there could be something wrong with your computer, your memory card reader, or the MicroSD card itself. That’s why you need to approach the problem methodically and apply the simples fixes first before moving on to more complicated ones.

Fix 1: Check if the MicroSD card is inserted properly

how to insert micro sd

The simplest thing that you can do to make your MicroSD card readable is to check if it’s been inserted properly into your memory card reader. Some MicroSD card readers don’t click when a card is inserted fully, so it’s easy for it to lose connection and become unreadable.

If you’re using an external memory card reader (i.e., one that’s not part of your laptop or computer), then you should also check its connection. After all, it doesn’t take much for USB cables to come loose or get chewed to pieces by a hungry pet.

Fix 2: Use a different memory card reader/computer

micro sd card reader

Just like all hardware devices, even memory card readers may fail unexpectedly. The most straightforward way to verify that your memory card reader is working as it should is to use a different one. If the issue with your MicroSD card not being detected persists, then it’s likely caused by the card itself—not your reader.

Ideally, you want the second memory card reader to be connected to a different operating system to rule out OS-related issues. Should you come to the conclusion that your operating system is to blame, then the third fix should be able to help you.

Fix 3: Repair your operating system

The Windows operating system is so smart that it can detect the corruption of important system files and repair them. You can use this feature to solve various drive-related issues that are preventing you from accessing your MicroSD card.

  1. Open the Start menu and type “command prompt.”
  2. Launch Command Prompt as administrator.
  3. Enter the following command:sfc /scannowsfc scan

The command will invoke the built-in system file checker, which will then scan and verify all protected system files, repairing them if necessary.

Step 2: Fix Logical Issues with Your MicroSD Card

Problem: Your MicroSD card is detected, but you can’t access your files due to data corruption and other logical issues, which may manifest themselves by your operating system asking you to format your memory card.

Solution: Logical issues can be annoying to deal with because the potential causes are numerous. The good news is that your operating system comes equipped with several effective tools that you can use to regain access to your files.

Fix 1: Fix file system issues using CHKDSK

All SD cards require a file system to store files. You can think of a file system as a specific method for organizing data on a storage device. Only when your SD card uses a file system recognized by your computer can you actually access its content. And when the file system becomes corrupted, you have a problem. To fix it, use the CHKDSK utility:

  1. Open the Start menu and type “command prompt.”
  2. Launch Command Prompt as administrator.
  3. Enter the following command: chkdsk X: /f (replace X with the letter assigned to your MicroSD card)chkdsk

Now you just have to wait a while for CHKDSK to finish doing its job, which may take up to several hours if your MicroSD has a large storage capacity.

Fix 2: Make hidden files visible

Files can be hidden from view to protect them against deletion. As useful as this feature is, it can quickly become a source of confusion when used by accident or triggered by malware. Fortunately, making hidden files visible could hardly be any simpler:

  1. Open the Start menu and type “command prompt.”
  2. Launch Command Prompt as administrator.
  3. Enter the following command: attrib -h /s /d X:\*.* (replace X with the letter assigned to your MicroSD card)attrib command

Here’s what the complex command does:

  • –h clears the Hidden file attribute.
  • /s applies attrib to matching files in the current directory and all of its subdirectories.
  • /d applies attrib to directories.

Fix 3: Scan the card using antivirus software

File system issues can be caused by nasty malware, so it’s always a good idea to scan your MicroSD card using antivirus software just to be safe. As a Windows user, you already have a reliable antivirus solution installed on your computer, Windows Defender, and you can tell it to scan your card with a few simple clicks:

  1. Open the Settings app.
  2. Go to Update & Security.
  3. Switch to the Windows and Security tab.
  4. Click Open Windows Security.

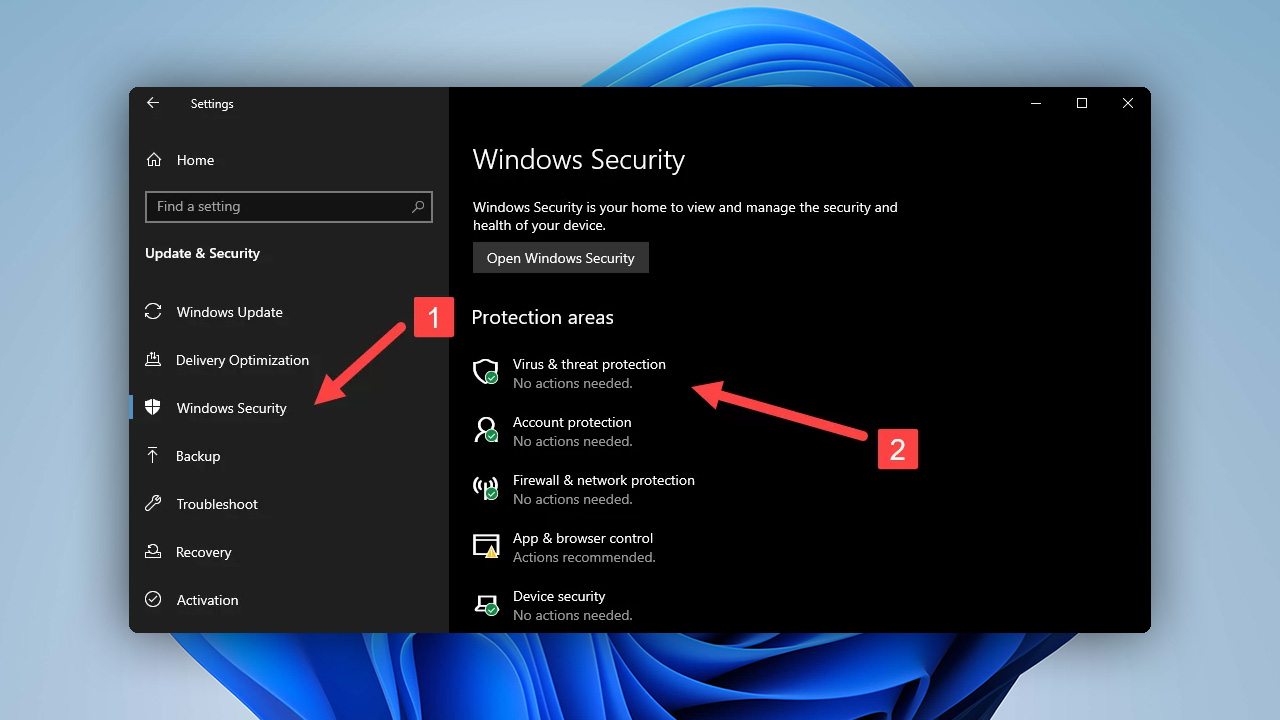

  5. Click Virus & threat protection.virus and threat protection

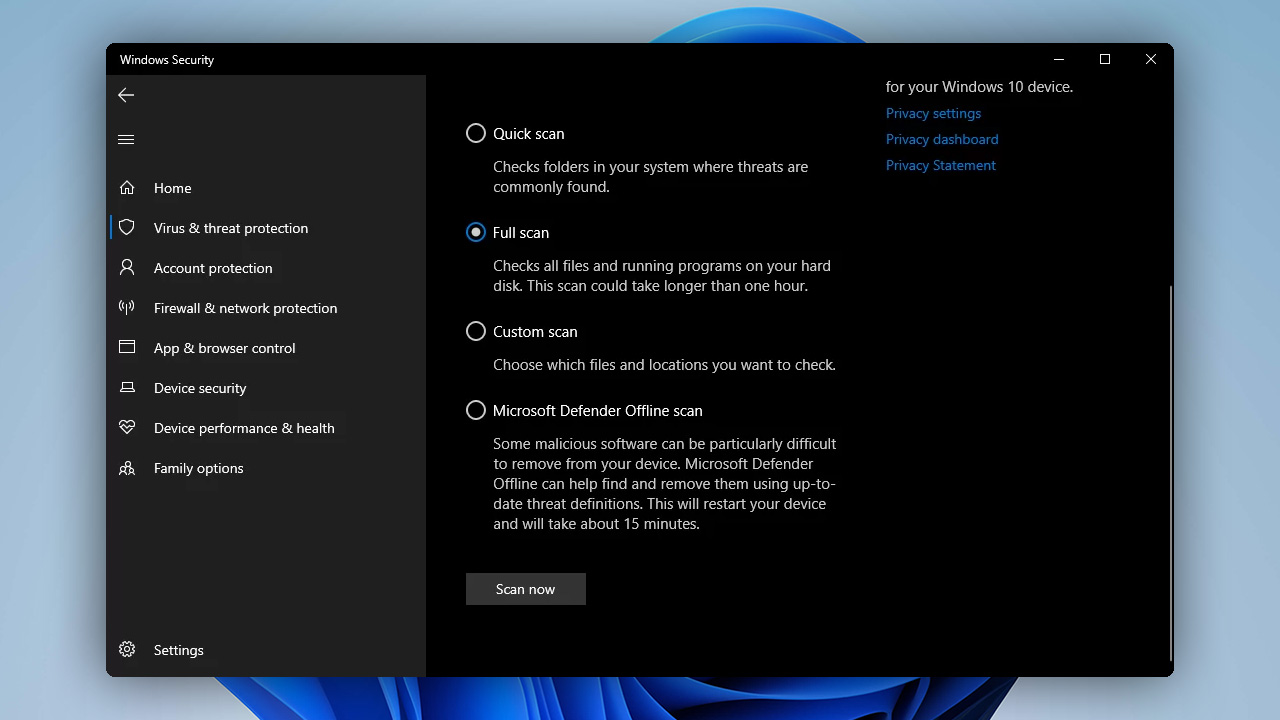

  6. Click Scan option and choose Full scan.
  7. Click the Scan now button.windows security full scan

Alternatively, you can also use the Microsoft Defender Offline scan, which is designed to remove even the most difficult malware.

Step 3: Recover Deleted or Lost Data from Your MicroSD Card

Problem: Your MicroSD card is readable and in good working order, but your files are nowhere to be found.

Solution: You need to use data recovery software to scan the MicroSD card and find all deleted or lost files that haven’t been overwritten yet. The good news is that there are many sd card data recovery software solutions to choose from, and some are so easy to use that it takes no effort at all to figure out how they work.

Fix 1: Recover your MicroSD card using a memory card reader

If you’re reading this part of our MicroSD card recovery guide, we assume that the card is fully readable and inserted into your memory card reader. That means you can now use a data recovery application to restore lost data from it.

Since it would be beyond the scope of this article to describe multiple applications, we’ve decided to focus only on Disk Drill. Why Disk Drill? Because it’s one of the best-rated applications of its kind, as our in-depth review confirms. Disk Drill includes a tone of useful features wrapped in an intuitive user interface, always delivering excellent performance.

To recover your MicroSD card using Disk Drill:

  1. Download Disk Drill to your computer and install it.
  2. Make sure the MicroSD card has been inserted into your memory card reader.

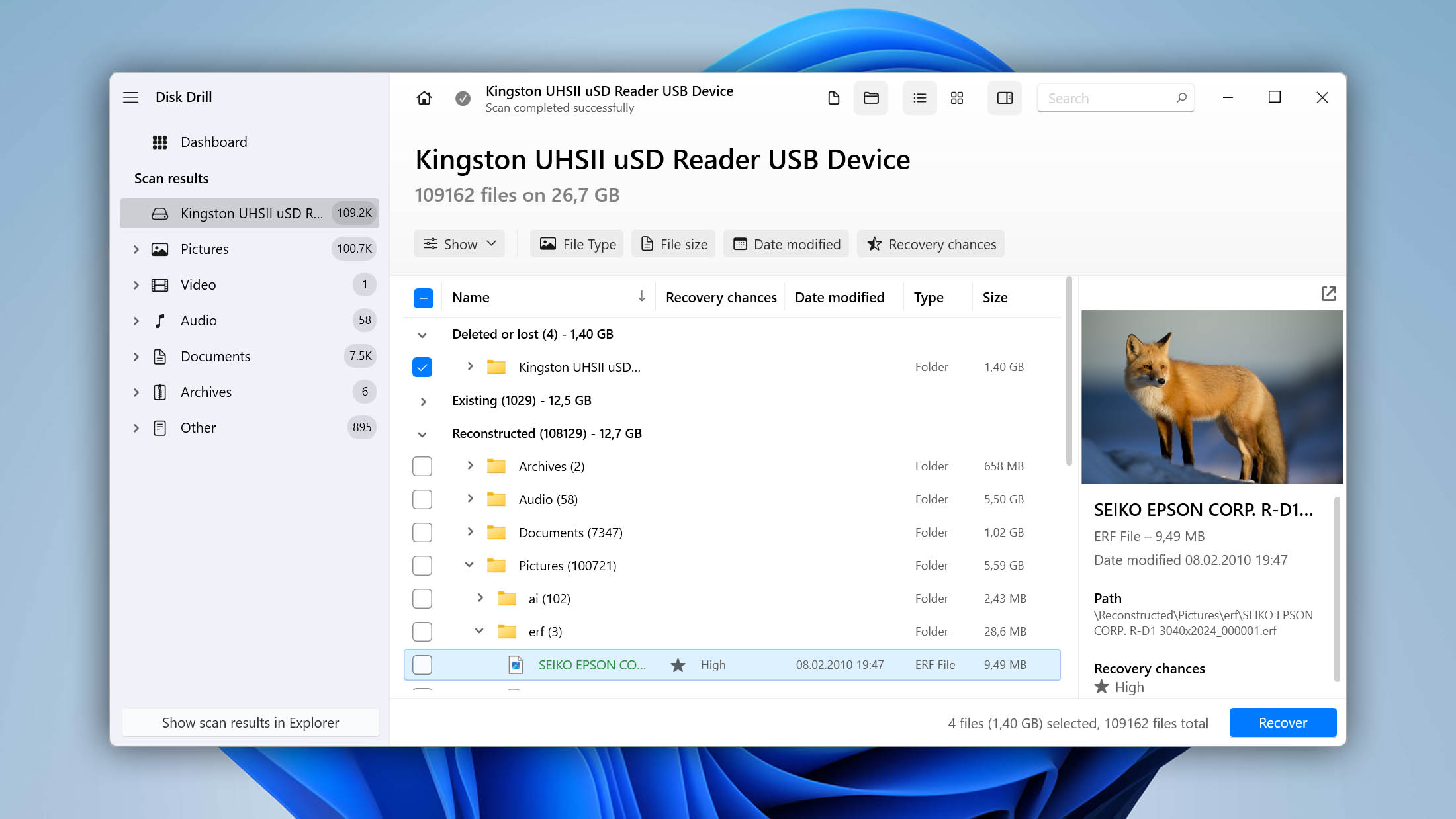

  3. Launch Disk Drill and scan the card.disk drill main screen sd card selected
  4. Preview & select lost files.
  5. Click the Recover button and specify your recovery destination.disk drill windows scan results preview selected - highlight

The free version of Disk Drill lets you recover up to 500 MB of data, and you can unlock unlimited recovery by upgrading to Disk Drill PRO.

Fix 2: Recover your MicroSD card via USB

usb laptop connect

Don’t have a memory card reader? That’s not a problem. In many cases, you can connect a device with an SD card to your computer via a USB cable and recover lost data directly from it.

This recovery method works with all USB mass storage devices, including digital cameras, digital audio, and portable media players, PDAs, and others. As long as you use Disk Drill to perform the recovery, the actual steps are the same as when recovering your MicroSD card using a memory card reader (as described above).

Fix 3: Use Android data recovery software to recover your MicroSD without a computer

Some Android apps are capable of restoring data directly on the device. A great example of a popular data recovery app for Android is DiskDigger Photo Recovery. With this app, you can recover some data even without root permissions, making it great for quick & simple data recovery jobs where not much is at stake.

Here’s how data recovery with DiskDigger works:

  1. Download DiskDigger for Android.
  2. Insert the SD card into your smartphone.
  3. Launch DiskDigger and tap Start basic photo scan.disk digger start
  4. Give DiskDigger permission to access your device’s storage.
  5. Select the videos you want to recover.
  6. Tap the Recover button.disk digger recover

To recover other files types besides photos and videos, you need to purchase the PRO version of the app.

Bonus fix: Send the MicroSD card to a data recovery service

data recovery service

Some cases of MicroSD card data loss are best handled by professionals, especially when it comes to those caused by mechanical damage. Fortunately, some of the best data recovery services are far more affordable than many people assume, often offering a free evaluation and a “no data, no charge” policy.

FAQ

Conclusion

MicroSD card recovery may seem daunting at first, but there’s actually very little to be worried about. As long as you follow the step-by-step instructions provided in this article, you’ll be able to recover data from your MicroSD card in no time. Just make sure to begin the recovery process as soon as possible because time is one of your biggest enemies when it comes to data loss.
